HGY24-4 Floor Concrete Placer Boom 20m height Mast Section Body Hydralic Climbing
Description
Мах. boom length - 24 m;
Concrete pipe line (steel, DN125 mm), outer diameter of the and fitting on pipes - 148 mm;
The High pressure flexible concrete hose with two and fitting (3000 mm) must be included in the delivery;
Support - outrigger (4 legs);
Remote control - wired remote control.
Specification
| Model | HGY24-4 |
| Concrete conveying pipe (mm) | Φ125 |
| Horizontal reach (m) | 24 |
| Work height (up to the hinge point of the arm root) | 22.5m |
| Boom Angle | 1 section boom | 0 °~ 90 ° |
| 2 section boom | 0 °~ 180 ° |
| 3 section boom | 0 °~ 180 ° |
| 4 section boom | 0 °~ 180 ° |
| Rotation | 360 ° |
| Rotation speed | 0~0.25 r/min |
| Power | 22KW |
| System Pressure | 32MPa |
| Climbing method | Floor climbing |
| Freestanding height (m) | 22.5 |
| Control mode | Cable/Radio remote/Panel |
| Power supply | 380V/50Hz |
| Wind speed | working | ≤56 km/h |
| non-working | ≤72 km/h |
| Working environment temperature | -20 °C~40 °C |
| Working altitude | ≤1000m |
| self weight | 20000Kg |
Characteristics
The HGY concrete placing boom consists of arm assembly, a rotating device, upper and lower supports, a chassis, concrete pipelines, a hydraulic system, and an electrical control system.
The boom is a three section box structure, which is extended and folded by a hydraulic system. When combined with a rotating mechanism, it can transport concrete to the required construction surface. The hydraulic system is equipped with a safety relief valve to prevent overloading of the working mechanism. The working oil cylinder is equipped with a hydraulic lock to ensure construction safety. The electrical control system can achieve control panel operation and wired operation. The interlocking function between each operation mode also ensures construction safety.
Advantage
1. Export to more than 20 countries with CE/ ISO/ GOST Certifications by skilled sales team.
2. Mobile and internal climbing type are also offering as new designed
3. High Quality control: blasting and rust protection painting with advanced painting process. Strict and experience welding line.
4. Well known hydralic system and Electronic control system.
5. Engineers are available to service machinery overseas within 12 months warranty.
6. One set free easy-worn spare parts are provided with per set tower cranes.
Pictures
Product Tags:
|
|

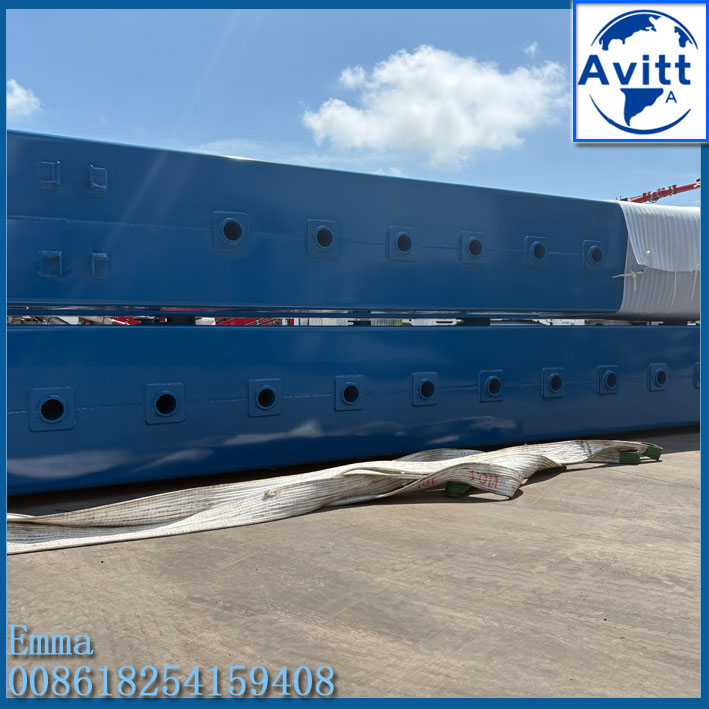

HGY24-4 Floor Concrete Placer Boom 20m Height Mast Section Body Hydralic Climbing Images
|
